Fire Extinguisher -ABC Type

ABC TYPE

GABY operated A, B ,C Fire Extinguisher are characterized by their high performance,simple method of operation and rapid fire knock down capability.They are suitable tackling fires involving freely burning materials,petrol&oil,gas & electrical equipment.They are ideal for vechicle & marine risks.Dry Powder Fire Extinguisher fire contain high performance powder to high Fire Rating

Features

  • Ammonium Phosphate based dry chemical powder confirms to14609 is capable of fighting class A,B,C & Electrical fires.
  • BIS Approved
  • CE Certified
  • HIgh Quality pure polyster powder coating
  • Controlled discharge
  • Brass Nickel Plated head value simple squeeze operation
  • Unique gauge testing System
  • Easy & more economical to maintain & service
  • Rechargeable and easy to service
  • High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks

Performance Data

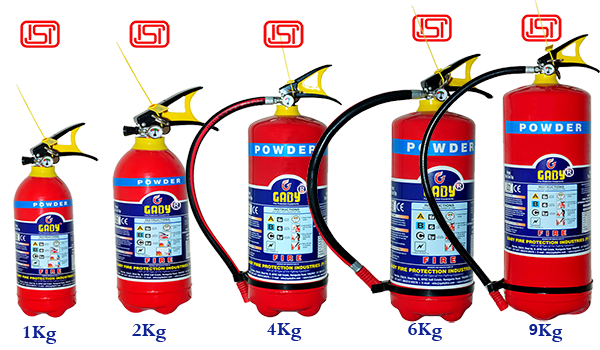

Model GF/ABC 1 GF/ABC 2 GF/ABC 4 GF/ABC 6 GF/ABC 9
Capacity 1Kg 2Kg 4Kg 6Kg 9Kg
Design Nozzle Nozzle Hose & Nozzle Hose & Nozzle Hose & Nozzle
Fire Rating(MAP 50%) 8B 8B 2A:21B 3A:21B 3A:21B
Fire Rating(MAP 50%) 1A:13B 1A:13B 1A:13B 1A:13B 1A:13B
Height 325 mm 380 mm 490 mm 530 mm 575 mm
Diameter 86+10 mm 106+10 mm 140+10 mm 150+10 mm 160+10 mm
Capacity 1Kg 2Kg 4Kg 6Kg 9Kg
Design Nozzle Nozzle Hose & Nozzle Hose & Nozzle Hose & Nozzle
Fire Rating(MAP 50%) 8B 8B 2A:21B 3A:21B 3A:21B
Height 325 mm 380 mm 490mm 530 mm 575 mm
Diameter 86+10 mm 106+10 mm 140+10 mm 150+10 mm 180+10 mm
Average Discharge Time 9sec 14sec 18sec 24sec 31sec
Average Range of throw 2m 2.5m 3m 5m 6m
Average% Discharge 92% 92% 94% 93% 93%
Operating Temperature -30oC to +55oC -30oC to +55oC -30oC to +55oC -30oC to +55oC -30oC to +55oC
Service Pressure(Ps) 15 bar 15 bar 15 bar 15 bar 15 bar
Max Service Pressure(Pms) 17 bar 17 bar 17 bar 17 bar 17 bar
Test Pressure 35 bar 35 bar 35 bar 35 bar 35 bar
Expelling Agent Nitrogen (UHP Grade) Nitrogen (UHP Grade) Nitrogen (UHP Grade) Nitrogen (UHP Grade) Nitrogen (UHP Grade)
Full Weight 2kg 3.4kg 6.6kg 8.9kg 13.3kg
Empty Weight 1kg 1.4kg 2.6kg 2.9kg 4.3kg
Shipping Weight 2.1kg 3.6kg 7.0kg 9.2kg 13.6kg
Packing Standard Inner 13.75x4.75x4.75 Outer(5in 1)- 16.5x10x10 Inner 13.75x4.75x4.75 Outer(4in 1)- 16.5x10x10 2 in 1 -21x6.75x10x14.10 2 in 1 -21x6.75x10x14.10 1 in 1) -24.5x8.0x8.0
Mounting Brackett Vehicle/Wall Bracket Vehicle/Wall Bracket Wall Bracket Wall Bracket Wall Bracket
Approvals BSI&CE BSI&CE BSI&CE BSI&CE BSI&CE
