Fire Extinguisher - CO2 Type

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

CO2 Type

GABY CO2 GAS Fire Extinguisher are characterizied by their high performance for fires involving an electrical rick like computers,office equipment and generators etc.CO2 is non-conductive,clean and safe,ensuring minimal damage to electrical equipment and furnishings.

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

Features

  • CO2 is colorless , odorless , Non Toxic and provides rapid knockdown of industrial fires.
  • BIS Approved
  • CE Certified
  • Body is made of Seamless Manganese Steel as per IS 7285 and CCOE/PESO approved
  • High quality Enamel Paint
  • controlled dischare
  • Brass head valve with simple squeeze or wheel Operations with pressure relief disc
  • Rechargeable and easy to service
  • Non conductive agent for electrical use without risk to operator
  • CO2 gas disappears quickly leaving no residue
  • Swivel horn for 2&3 kg with no freeze burn,with greater directional control of CO2

Performance Data

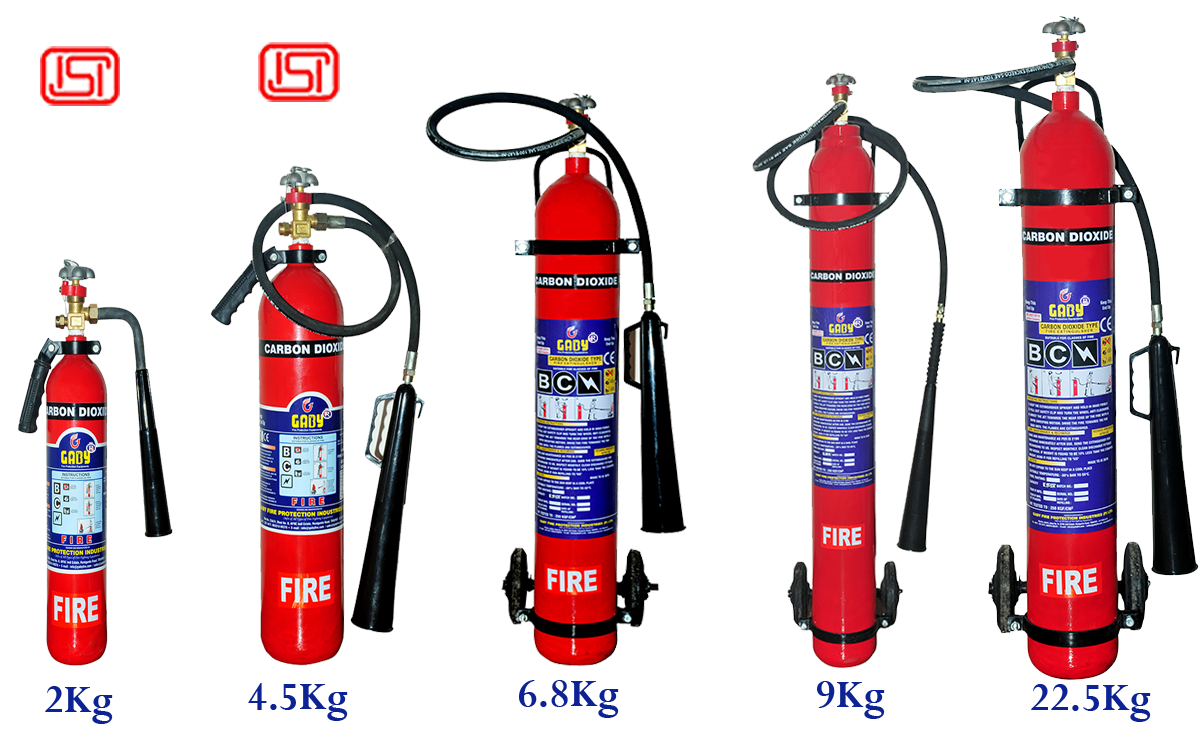

Model GF/CO2 2 GF/CO2 4.5
Capacity 2kg 4.5kg
Design Bend Pipe & Horn Hose & Horn
Fire Rating(MAP 50%) 8B 21B
Height 530mm 700mm
Diameter 108+10 mm 140+10 mm
Average Discharge Time 9sec 12
Average Range of throw 2.5m 2.5m
Average% Discharge 96% 96%
Operating Temperature -30oC to +55oC -30oC to +55oC
Service Pressure(Ps) 60 bar 60 bar
Max Service Pressure(Pms) 106 bar 105 bar
Test Pressure 250 bar 250 bar
Full Weight 8.9 or 8.2kg 17 or 16.4kg
Empty Weight 6.9 or 6.2kg 12.5 or 11.9 kg
Shipping Weight 9 or 8.3kg 17.4 or 16.8kg
Packing Standard Jute Bags Jute Bags
Mounting Brackett Wall Bracket Wall Bracket
Approvals BSI&CE BSI&CE

CO2 Type Trolly Mounted

GABY CO2 GAS Fire Extinguisher are characterizied by their high performance for fires involving an electrical rick like computers,office equipment and generators etc.CO2 is non-conductive,clean and safe,ensuring minimal damage to electrical equipment and furnishings.

Model GF/CO2 6.8 GF/CO2 9 GF/CO2 22.5
Capacity 6.8kg 9kg 22.5kg
Design Hose & Horn Hose & Horn Hose & Horn
Height(Approx) 960mm 1250mm 1155mm
Diameter(Approx) 140+10 mm 140+10 mm 232+10 mm
Average Discharge Time 10-20sec 15-36sec 20-30sec
Average Range of throw 10 m 10 m 10 m
Average% Discharge 95% 95% 95%
Operating Temperature -30oC to +55oC -30oC to +55oC -30oC to +55oC
Service Pressure(Ps) 60 bar 60 bar 60 bar
Test Pressure 250 bar 250 bar 250 bar
Full Weight(Approx) 21 or 23kg 29 or 32kg 66 or 69kg
Empty Weight(Approx) 14.5 or 6.5kg 20 or 23 kg 43.5 or 46.5kg
Shipping Weight(Approx) 22 or 24kg 30 or 33kg 67 or 70kg
Packing Standard Jute Bags Jute Bags Jute Bags
Approvals BSI&CE BSI&CE BSI&CE
