Fire Extinguisher - Mechanical Foam Type

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

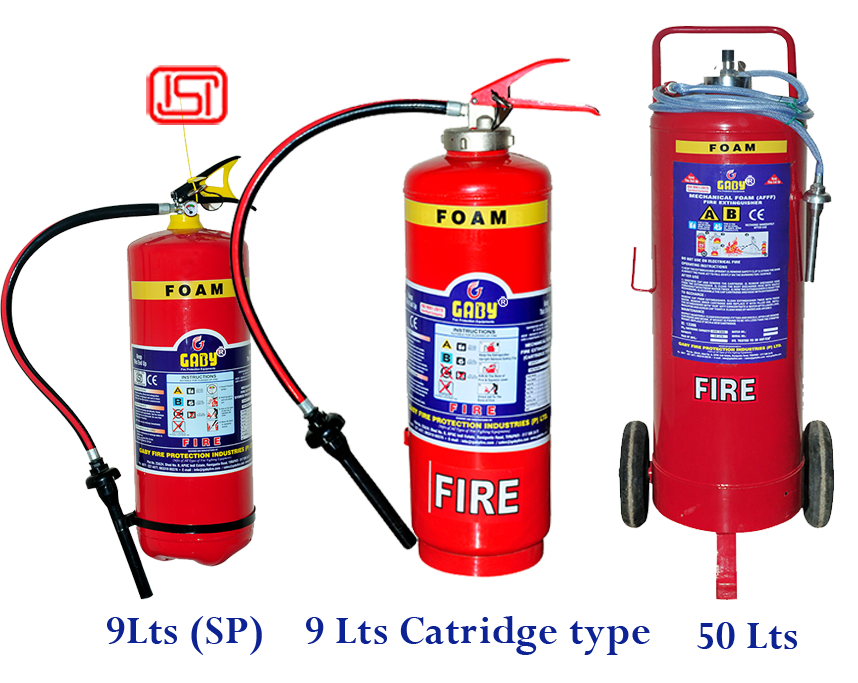

Mechanical Foam Type Cartridge

GABY Cartridge operated Mechanical Foam fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth,wood and furniture.

Note: Mechanical Foam are not suitable for fires involving electrical risk


Foam Type Suitable for class A and Class B Fire Risk

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

FEATURES

  • Aqueous Film Forming Foam (AFFF) is capable of fighting Class A and Class B Fires
  • BIS Approved
  • CE Certified
  • HIgh Quality pure polyster powder coating
  • Spray Nozzel to Provide High fire rating
  • Choice of capacity 6Ltrs. & 9Ltrs.
  • Controlled discharge
  • Brass Nickel Plated head value simple squeeze operation
  • Rechargable and easy to service
  • High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks

PERFORMANCE DATA

Model GF/MF9
Capacity 9Ltr
Design Hose & Air aspirated Nozzel
Fire Rating(MAP 50%) 4A:34B
Height 585 mm
Diameter 180+10 mm
Average Discharge Time 32sec
Average Range of throw 7m
Average% Discharge 97%
Operating Temperature +5oC to +55oC
Service Pressure(Ps) 14 bar
Max Service Pressure(Pms) 16 bar
Test Pressure 35 bar
Expelling Agent CO2 Gas
CO2 Gas cartridge 60 gm
Full Weight 13kg
Empty Weight 5.3kg
Shipping Weight 13.5
Packing Standard 1 in -1 24.75x8x8
Mounting Brackett Wall Bracket
Approvals BSI&CE

Mechanical Foam Type Trolly Mounted

Features a combination of mobility,1.person operation &fire-killing Power.GABy units utilize a regulator to maintain a consistent operating pressure and flow throughout the total extinguisher discharge

Model GF/MF 50
Capacity 50Ltr
Design Hose & Air aspirated Nozzel
Height(Approx) 1285mm
Diameter(Approx) 300+10 mm
Average Discharge Time 40-180sec
Average Range of throw 10 m
Minimum % Discharge 90%
Operating Temperature -5oC to +55oC
Expansion Space(Ps) 14kg/cm2
Test Pressure 30kg/cm2
Expelling Agent CO2 Gas
CO2 Gas cartridge 300 gm
Test Pressure 250 bar
Full Weight(Approx) 87kg
Empty Weight(Approx) 37kg
Shipping Weight(Approx) 89kg
Packing Standard Jute Bags
Approvals BSI&CE

Mechanical Foam Type Stored Pressure

GABY Stored Pressure Mechanical Foam fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth,wood and furniture.

Note: Mechanical Foam are not suitable for fires involving electrical risk


Foam Type Suitable for class A and Class B Fire Risk

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

FEATURES

  • Aqueous Film Forming Foam (AFFF) is capable of fighting Class A and Class B Fires
  • BIS Approved
  • CE Certified
  • High Quality pure polyester powder coating
  • Spray Nozzle to Provide High fire rating
  • Controlled discharge
  • Brass Nickel Plated head value simple squeeze operation
  • Unique gauge testing system(UGTS)
  • Rechargeable and easy to service
  • High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks
  • Large Loop Stainless steel pull pin

PERFORMANCE DATA

Model GF/MF9-SP
Capacity 9Ltr
Design Hose & Air aspirated Nozzle
Fire Rating(MAP 50%) 2A:21B
Height 575 mm
Diameter 180+10 mm
Average Discharge Time 35sec
Average Range of throw 7m
Average% Discharge 97%
Operating Temperature +5oC to +55oC
Service Pressure(Ps) 15 bar
Max Service Pressure(Pms) 17 bar
Test Pressure 35 bar
Expelling Agent Nitrogen(UHP Grade)
Full Weight 12kg
Empty Weight 4.3kg
Shipping Weight 12.3kg
Packing Standard 1 in -1 24.75x8x8
Mounting Brackett Wall Bracket
Approvals BSI&CE
