Fire Extinguisher - Dry Powder Type

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

Dry Powder Type Cartridge

GABY Cartridge operated Dry Powder Fire Extinguisher are characterized by their high performance,simple method of operation and rapid fire knock down capability.They are suitable tackling fires involving freely burning materials,petrol&oil,gas & electrical equipment.They are ideal for vechicle & marine risks.Dry Powder Fire Extinguisher fire contain high performance powder to high Fire Rating

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS ,MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

Features

  • Sodium-BI-Carbonate based Dry chemical powder confirms to IS 4308 & capable of fighting class B,C & Electrical Fires
  • MONO Ammonium Phosphate based dry chemical powder confirms to IS 14609 is capable of fighting class A,B,C & Electrical fires.
  • BIS Approved
  • CE Certified
  • High Quality pure polyster powder coating
  • Controlled discharge
  • Brass Nickel Plated head value simple squeeze operation
  • Rechargeable and easy to service
  • Easy & more economical to maintain & service
  • High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks
  • Large Loop Stainless steel pull pin

Performance Data

Model(SBC) GF/DCP 6 GF/DCP 9
Capacity 6Kg 9Kg
Design Hose & Nozzle Hose & Nozzle
Fire Rating(MAP 50%) 34B 34B
Fire Rating(MAP 50%) 3A:55B 4A:89B
Height 540 mm 585 mm
Diameter 150+10 mm 180+10 mm
Average Discharge Time 20sec 30sec
Average Range of throw 4.5m 5m
Average% Discharge 94% 93%
Operating Temperature -30oC to +55oC -30oC to +55oC
Service Pressure(Ps) 14 bar 14 bar
Max Service Pressure(Pms) 16 bar 16 bar
Test Pressure 35 bar 35 bar
Expelling Agent CO2 Gas CO2 Gas
CO2 Gas Cartridge 120gm 200gm
Full Weight 10.3kg 15.3kg
Empty Weight 4.3kg 6.3kg
Shipping Weight 10.5kg 15.7kg
Packing Standard 2 in 1 -22.5x6.75x14.10 2 in 1 -24.75x15.3x8
Mounting Brackett Wall Bracket Wall Bracket
Approval BIS&CE BIS&CE

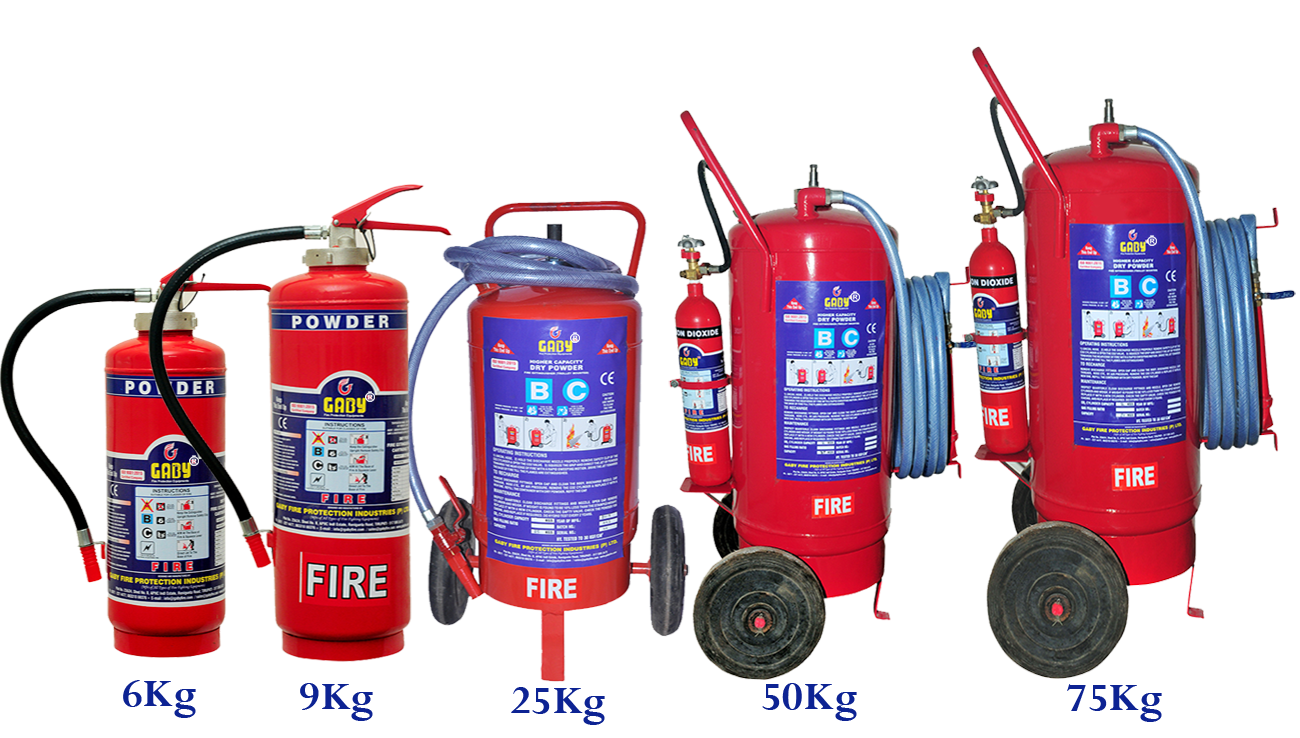

Dry Powder Type Trolley Mounted

Highly mobile,these units permits a single operator quick access to extinguishing of fires that would normally require several operators with large hand portables

Model(SBC) GF/DCP 25 GF/DCP 50 GF/DCP 75
Capacity 25Kg 50Kg 75Kg
Design Hose & Nozzle Hose & Nozzle Hose & Nozzle
Height 980 mm 1020 mm 1030 mm
Diameter 300+10 mm 400+10 mm 400+10 mm
Average Discharge Time 25-30sec 40-50sec 50-60sec
Average Range of throw 6m 8m 10m
Average% Discharge 85% 85% 85%
Operating Temperature -30oC to +55oC -30oC to +55oC -30oC to +55oC
Service Pressure(Ps) 14 kg/cm2 14 kg/cm2 14 kg/cm2
Test Pressure 30kg/cm2 30kg/cm2 30kg/cm2
Expelling Agent CO2 Gas CO2 Gas CO2 Gas
CO2 Gas Cylinder 1kg 2kg 2kg
Full Weight 64kg 107kg 146kg
Empty Weight 39kg 57kg 73kg
Shipping Weight 65kg 110kg 148kg
Packing Standard Jute Bags Jute Bags Jute Bags
Approvals BIS&CE BIS&CE BIS&CE
