Gaby Fire Protection Equipements, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS DEALERS, FIRE FIGHTING EQUIPMENTS CONTRACTORS

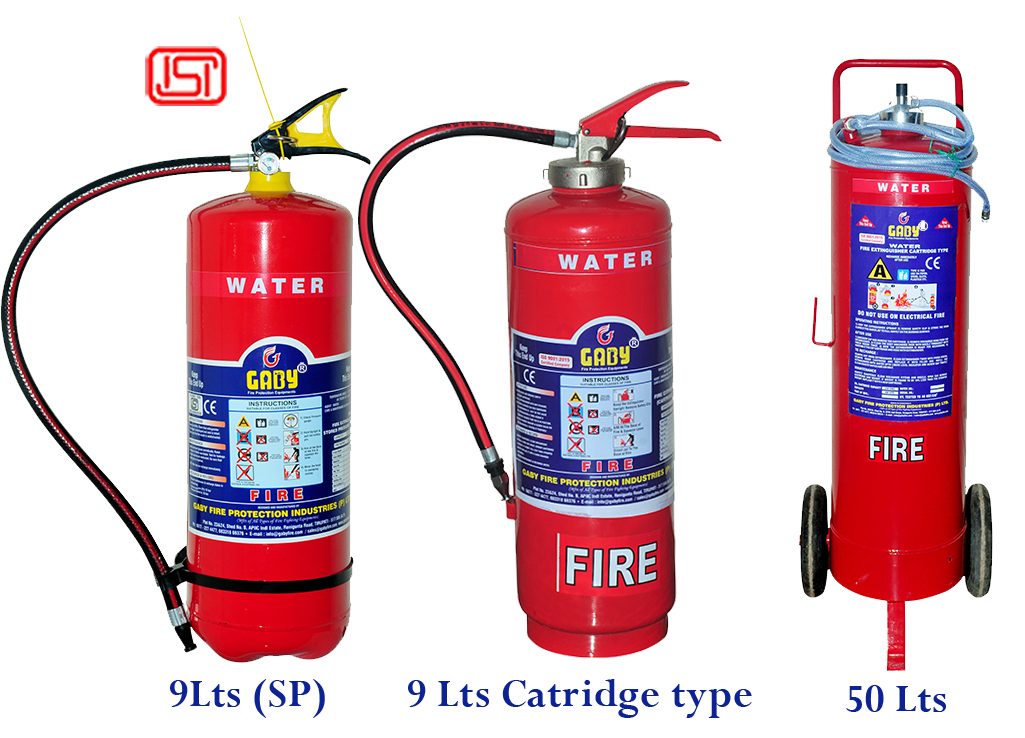

Fire Extinguisher - Water CO₂ Type

FIRE EXTINGUISHERS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS MANUFACTURERS, FIRE PROTECTION EQUIPMENTS SUPPLIERS, FIRE FIGHTING EQUIPMENTS MANUFACTURERS, FIRE FIGHTING EQUIPMENTS SUPPLIERS, FIRE EXTINGUISHERS DEALERS

Water CO₂ Type

GABY Cartridge operated Water CO₂ fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth,wood and furniture.

Note:water extinguishers are not suitable for fires involving electrical risk

Water CO₂ Type Suitable for class A Fire Risk

Features

Water Types are capable of fighting Class A Fire effectively
BIS Approved
CE Certified
High Quality pure polyester powder coating
Spray Nozzle to Provide High fire rating
Choice of capacity 6Ltrs. & 9Ltrs.
Controlled discharge
Brass Nickel Plated head value simple squeeze operation
Rechargeable and easy to service
High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks

Performance Data

Model	GF/WC9
Capacity	9Ltr
Design	Hose & Nozzle
Fire Rating(MAP 50%)	3A
Height	585 mm
Diameter	180+10 mm
Average Discharge Time	32sec
Average Range of throw	7m
Average% Discharge	97%
Operating Temperature	+5^oC to +55^oC
Service Pressure(Ps)	14 bar
Max Service Pressure(Pms)	16 bar
Test Pressure	35 bar
Expelling Agent	CO2 Gas
CO2 Gas cartridge	60 gm
Full Weight	13kg
Empty Weight	5.3kg
Shipping Weight	13.5kg
Packing Standard	1 in -1 24.75x8x8
Mounting Brackett	Wall Bracket
Approvals	BSI&CE

Water cO₂ Trolley Mounted

Features a combination of mobility,1.person operation &fire-killing Power.GABY units utilize a regulator to maintain a consistent operating pressure and flow throughout the total extinguisher discharge

Model	GF/WC 50
Capacity	50Ltr
Design	Hose & Nozzel
Height(Approx)	1285mm
Diameter(Approx)	300+10 mm
Average Discharge Time	40-180sec
Average Range of throw	10 m
Minimum % Discharge	90%
Operating Temperature	-5^oC to +55^oC
Expansion Space(Ps)	14kg/cm²
Test Pressure	30kg/cm²
Expelling Agent	CO2 Gas
CO2 Gas cartridge	300 gm
Test Pressure	250 bar
Full Weight(Approx)	87kg
Empty Weight(Approx)	37kg
Shipping Weight(Approx)	89kg
Packing Standard	Jute Bags
Approvals	--

Water CO₂ Type Stored Pressure

GABY Stored Pressure Water CO₂ fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth,wood and furniture.

Note: Water extinguishers are not suitable for fires involving electrical risk

Foam Type Suitable for class A and Class B Fire Risk

Features

Water Types are capable of fighting Class A Fire effectively
BIS Approved
CE Certified
High Quality pure polyester powder coating
Spray Nozzle to Provide High fire rating
Controlled discharge
Brass Nickel Plated head value simple squeeze operation
Unique gauge testing system(UGTS)
Rechargeable and easy to service
High Quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks
Large Loop Stainless steel pull pin

Performance Data

Model	GF/WC9-SP
Capacity	9Ltr
Design	Hose & Nozzel
Fire Rating(MAP 50%)	2A
Height	575 mm
Diameter	180+10 mm
Average Discharge Time	35sec
Average Range of throw	7m
Average% Discharge	97%
Operating Temperature	+5^oC to +55^oC
Service Pressure(Ps)	15 bar
Max Service Pressure(Pms)	17 bar
Test Pressure	35 bar
Expelling Agent	Nitrogen(UHP Grade)
Full Weight	12kg
Empty Weight	4.3kg
Shipping Weight	12.3kg
Packing Standard	1 in -1 24.75x8"x8"
Mounting Brackett	Wall Bracket
Approvals	BSI&CE
